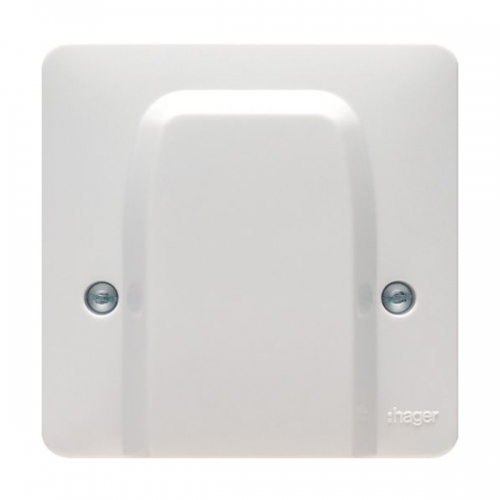

Hager WMP50FO Sollysta White Moulded Cooker Connection Unit With Open Brass Terminals 45A

Hager WMP50FO Description

The Hager WMP50FO Sollysta is a white moulded 45A cooker connection unit with open brass terminals designed with a modern, slimline profile and round corners that blend in naturally with household furnishings.

Designed to provide fast, safe and stress free installation and features a range of benefits to save time, improve safety and reduce costs.

With one of the shallowest projections on the market that allows more cabling space and faceplate overlap the final fitting is quicker and provides a neater finish.

The Hager Sollysta WMP50FO is undoubtedly the first choice of both the professional electrician as well as the style conscious home owner.

• Complies with BS 5733.
• Terminal capacity: 2 x 10.0mm² conductors.
• Large open brass terminals for ease of installation.
• Protective red washer must be used under cable clamp to prevent damage to cable.
• Supplied with M3.5 x 20mm long fixing screws.

Hager WMP50FO Features

Hager Sollysta Range Overview

In addition to its installation features for the contractor the Hager white moulded range has particular aesthetic appeal for the end user with a fresh rounded appearance that also suggests something solid and substantial.

The Sollysta range has a subtle curved profile with rounded edges and a slight indentation around the rockers to further soften the look.

Hager Sollysta range has the justifiable reputation for being the easiest in the market to install with the shallowest back projection for more cabling space.

Behind the faceplate the terminals face in the same direction with lead-ins for wiring, backed off screws held captive to prevent loss, wire end stops and clear white labelling off a dark grey background.

The Sollysta wall switches have a neutral loop terminal contained within the accessory. This allows contractors to complete the loop connection in the switch instead of in the ceiling rose. Not only does this reduce cabling and the uncomfortable time spent working at ceiling level, but it also meets the needs of BS7671 since the connections are readily accessible for inspection.

The socket outlets are double pole and twin earth as standard and feature additional security with a three pin operated shutter mechanism. This prevents access to live parts unless all three pins from a standard British 13 amp plug are in position.

The Hager white moulded range has high impact strength for safety and is scratch resistant and works perfectly in both commercial and domestic installations.
